このページはRPVLC(Reconfigurable Pixel-level Visible Light Communication)システムにおける参考資料(ブロック図,回路図など)のページです.
RPVLCコア

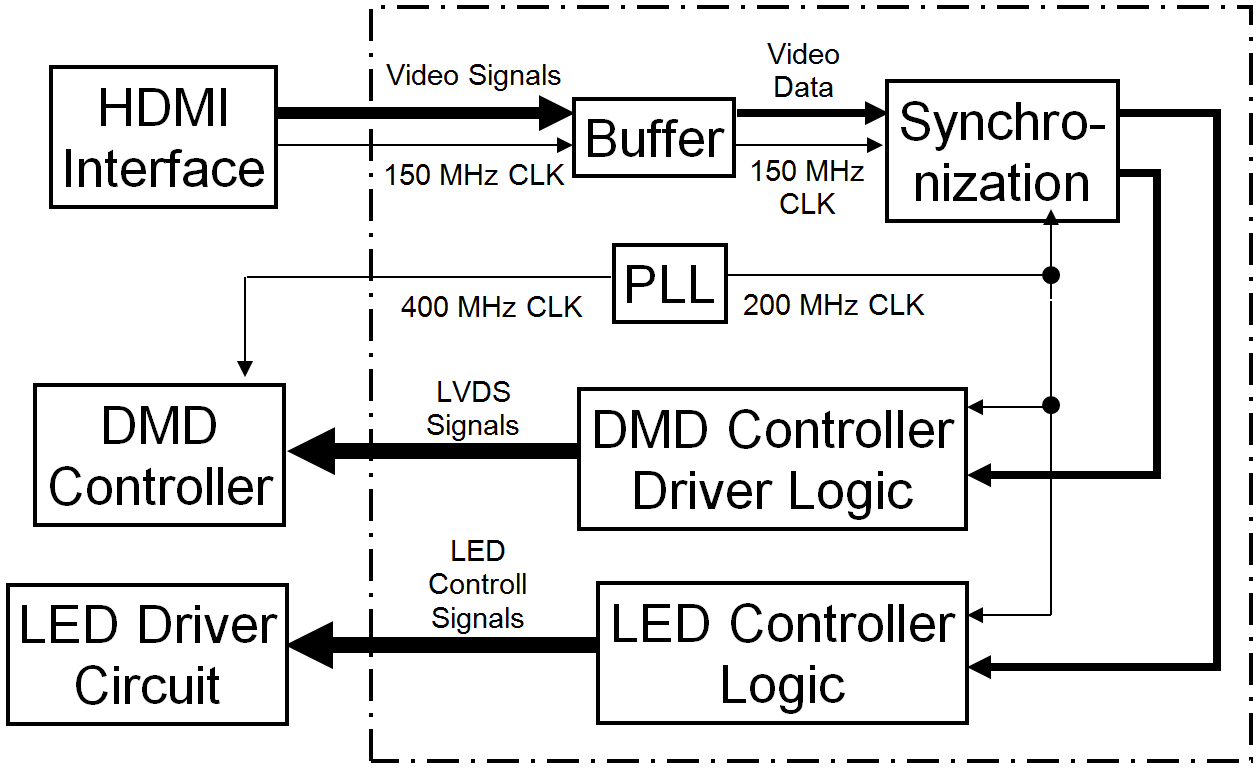

ブロック図

ブロック図(詳細)

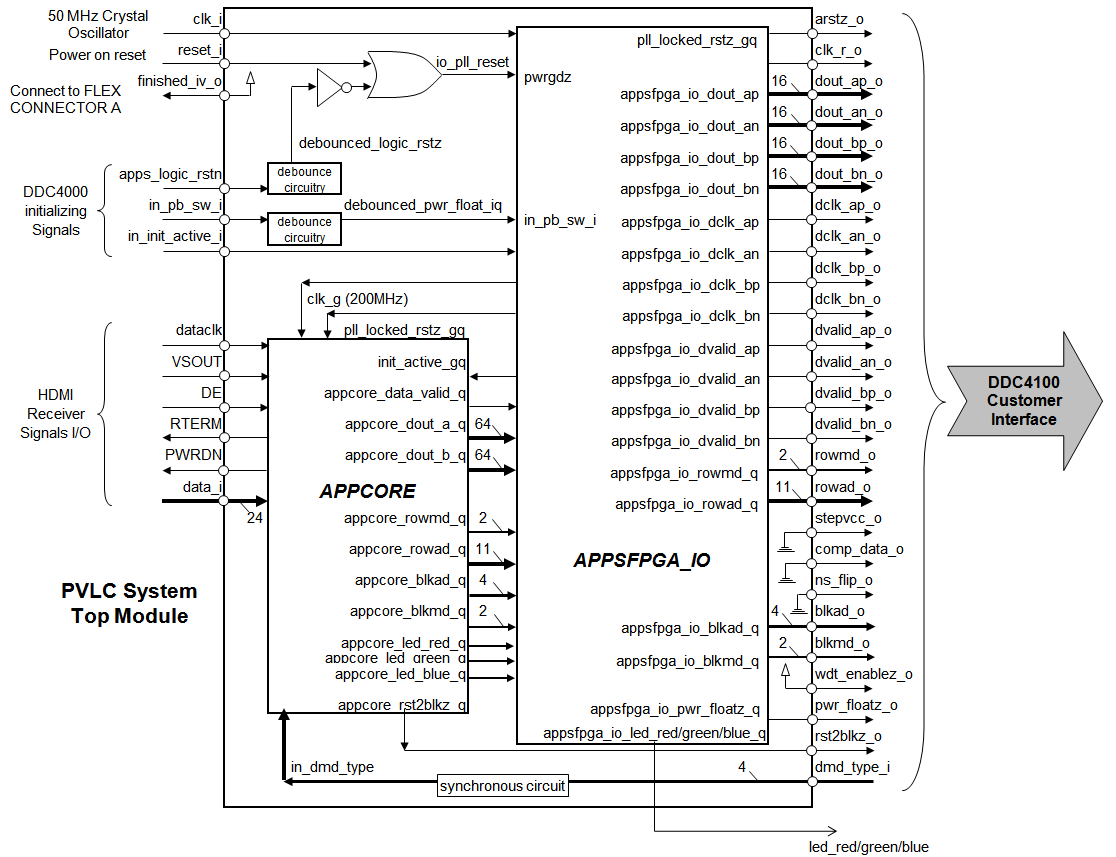

Top Module

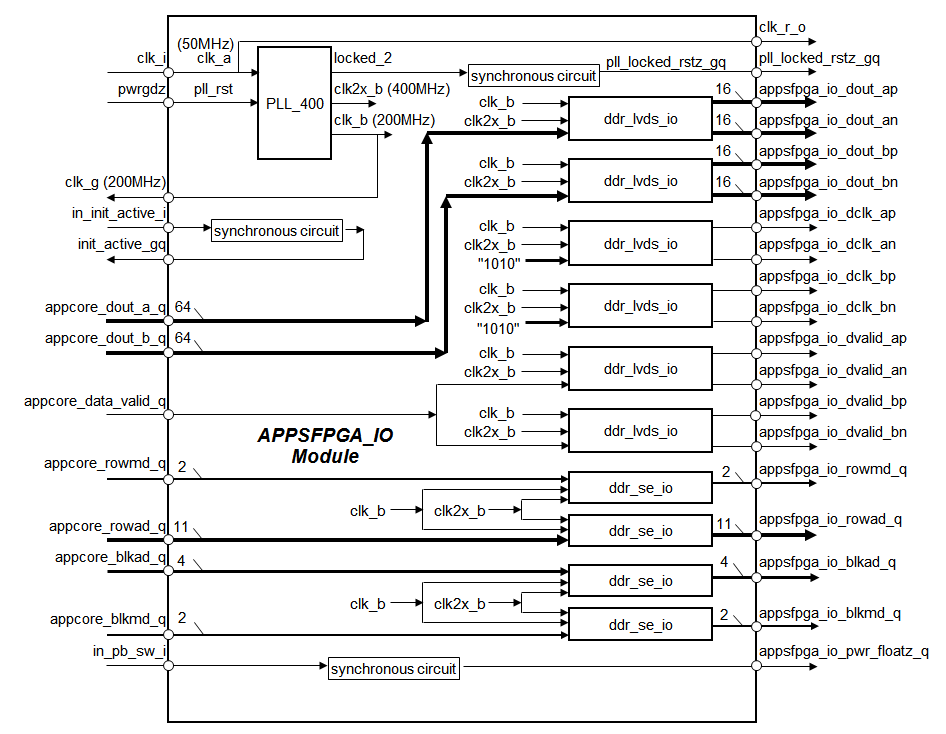

APPSFPGA_IO Module

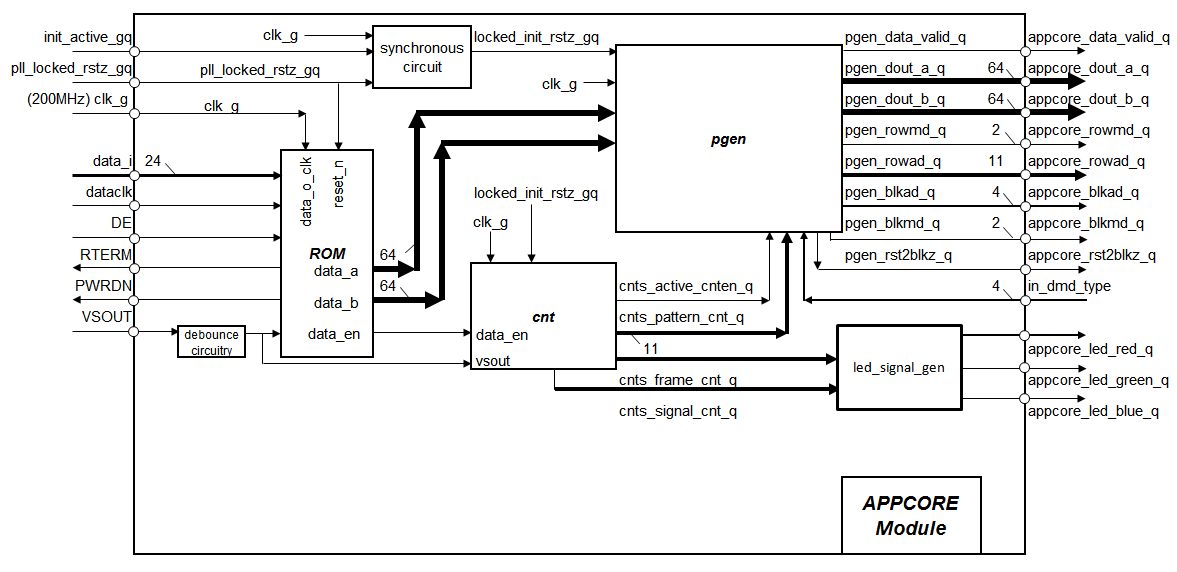

APPCORE Module
2

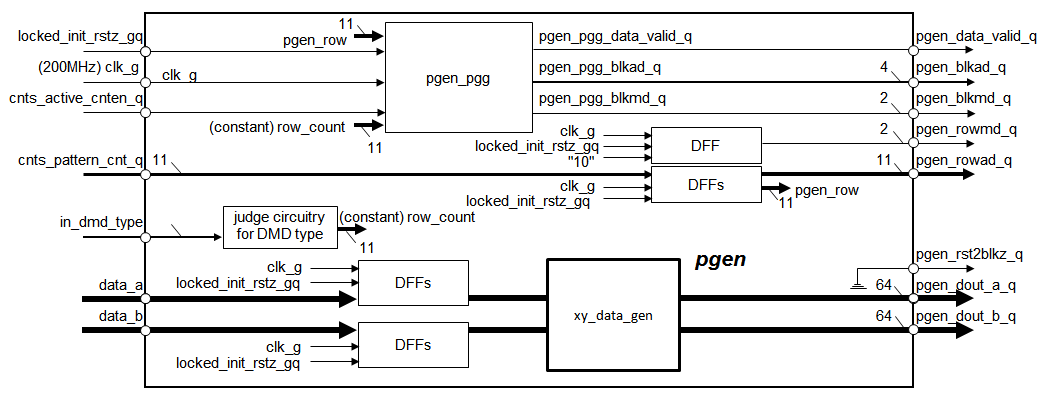

PGEN Module

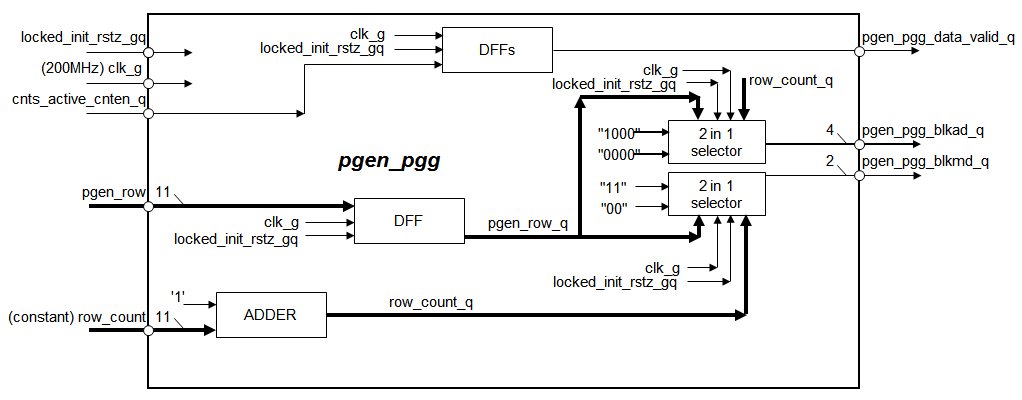

PGEN_PGG Module

HDMIインタフェース基板

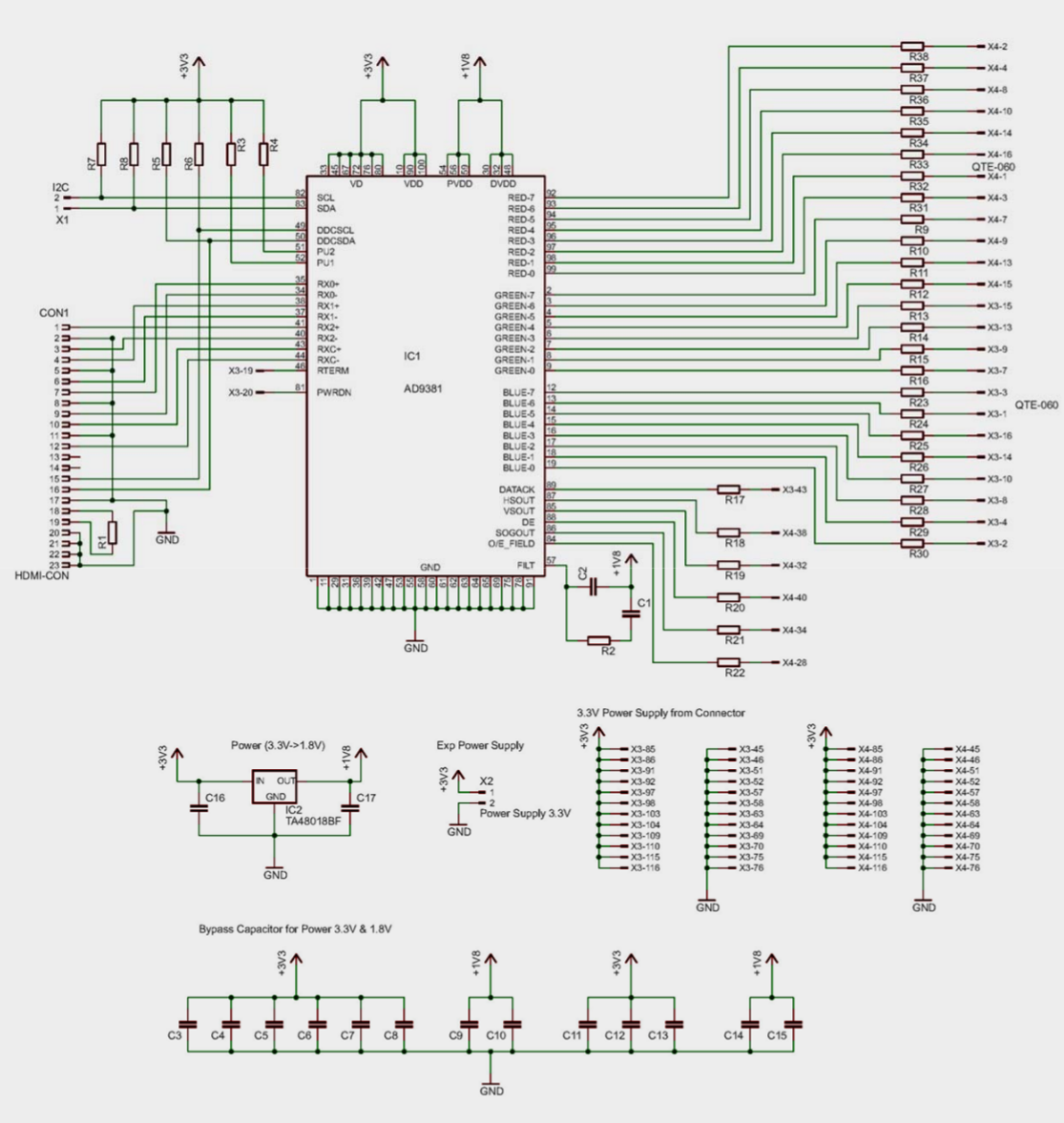

回路図

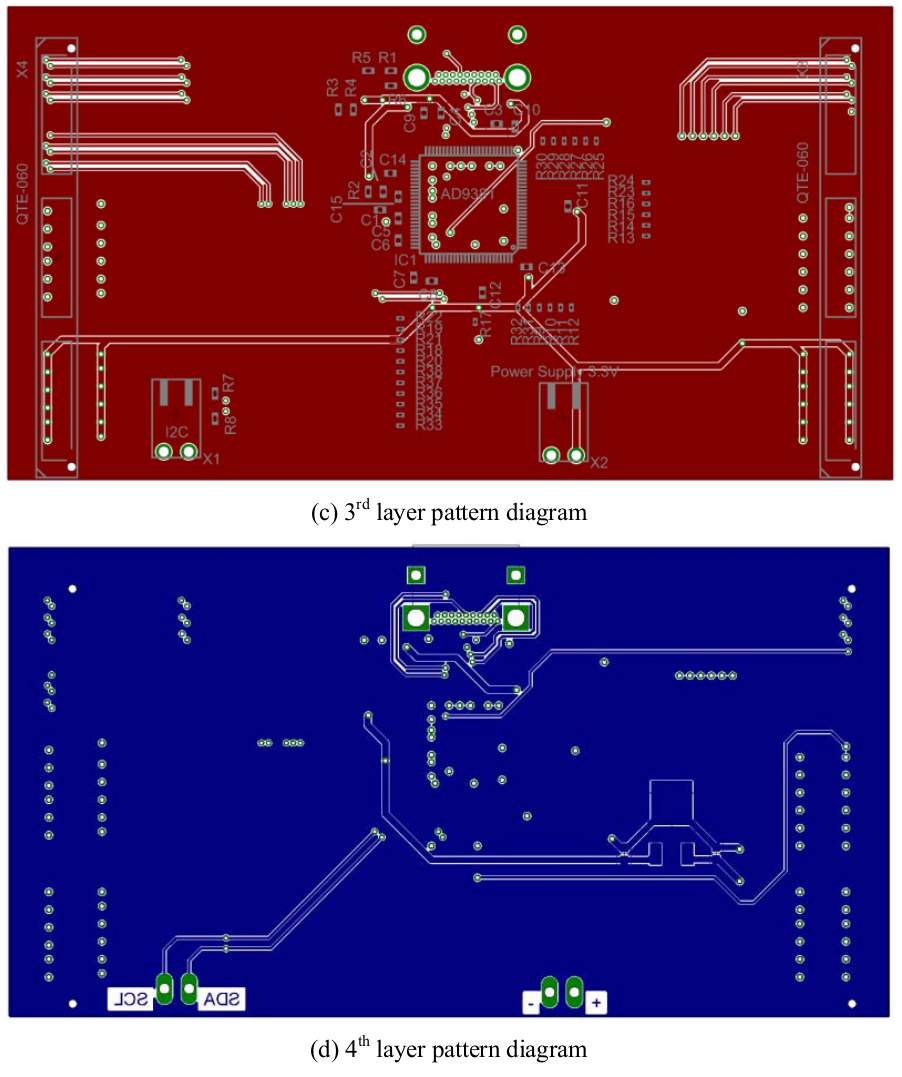

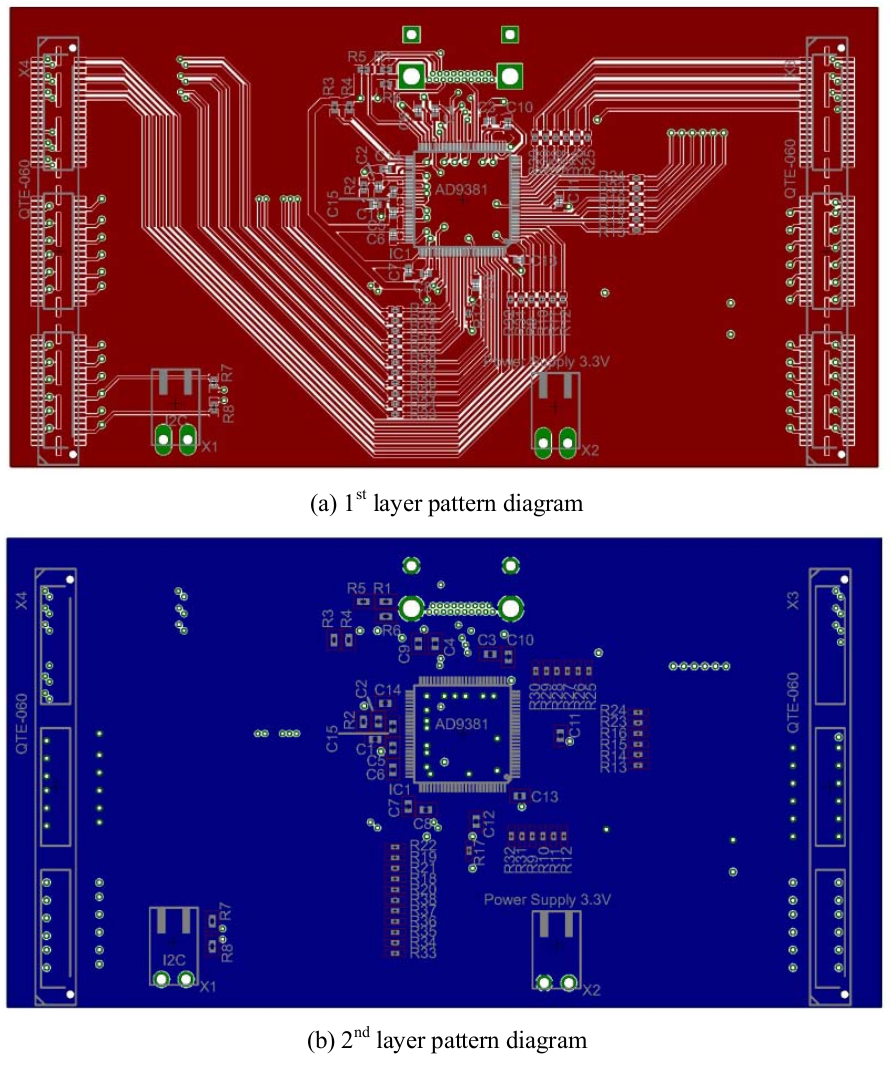

基板パターン図


実際の回路

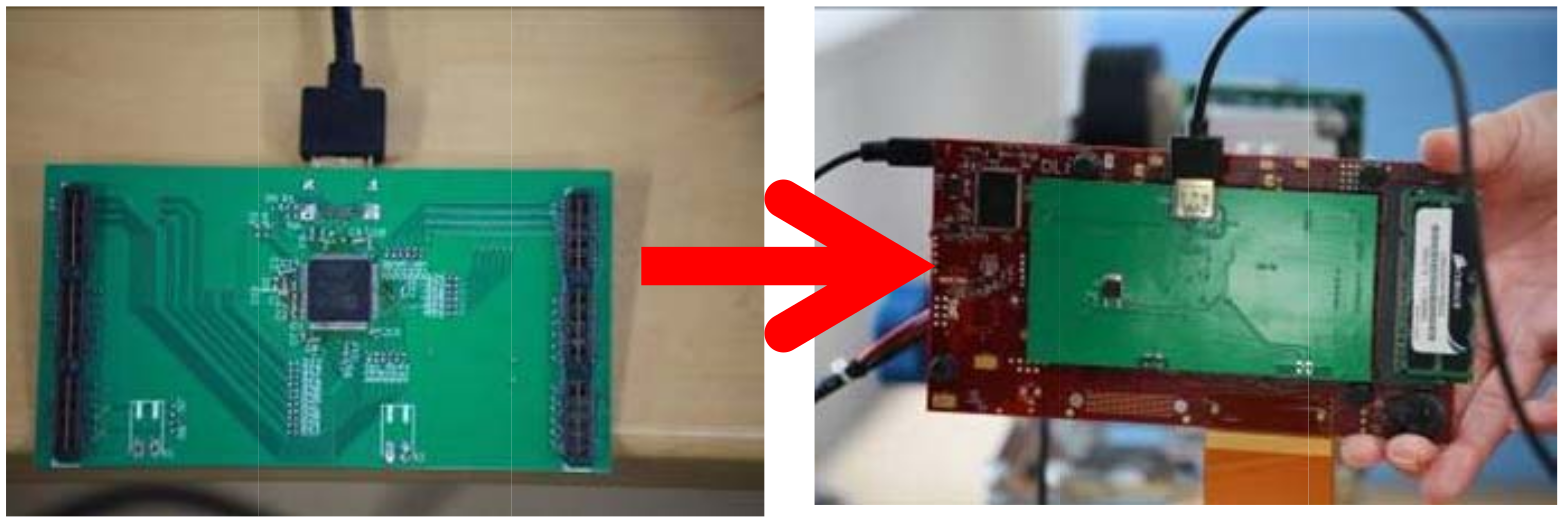

(左) HDMIインタフェース基板 (右) 基板の評価モジュールへの装着時の様子
LED光源制御基板

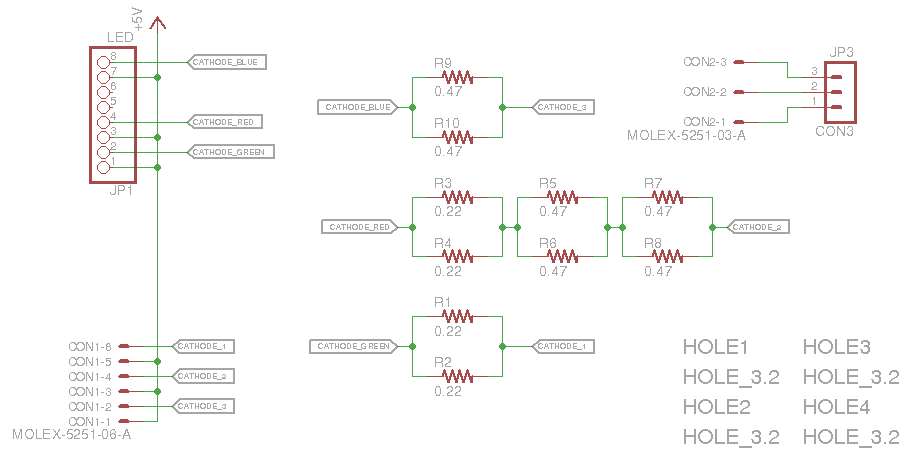

回路図

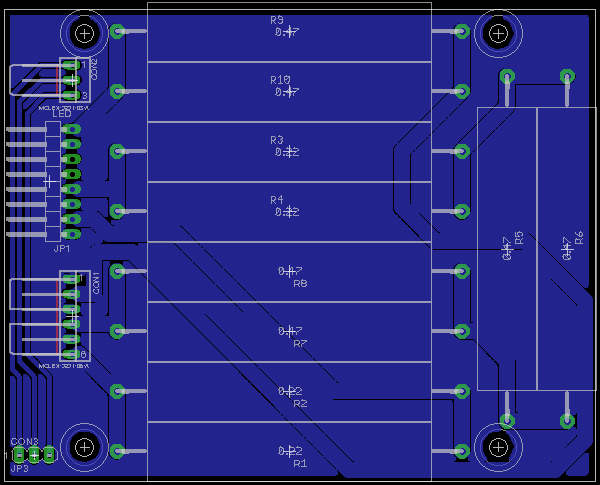

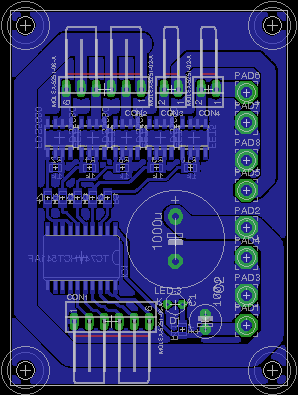

ボード図

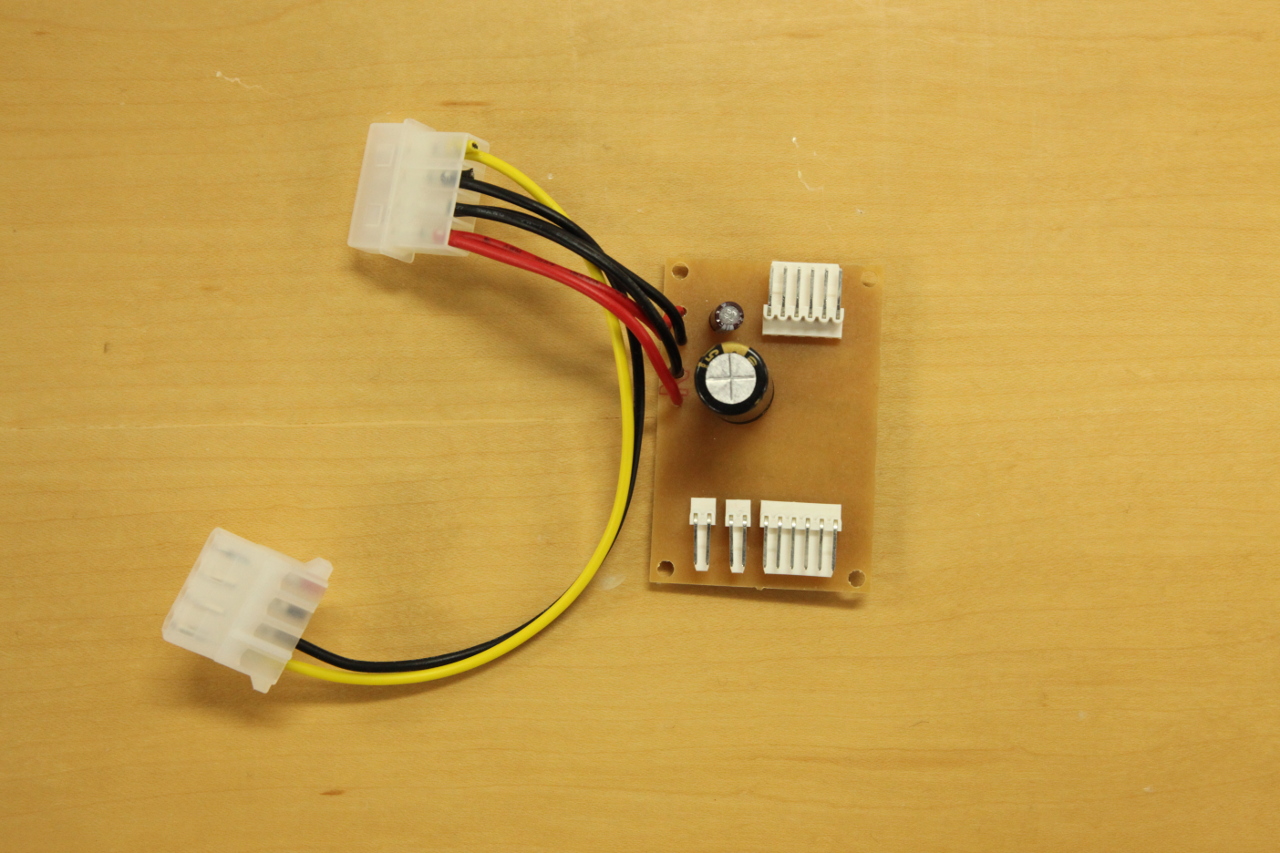

実際の回路

LED電流制御基板
回路図

ボード図

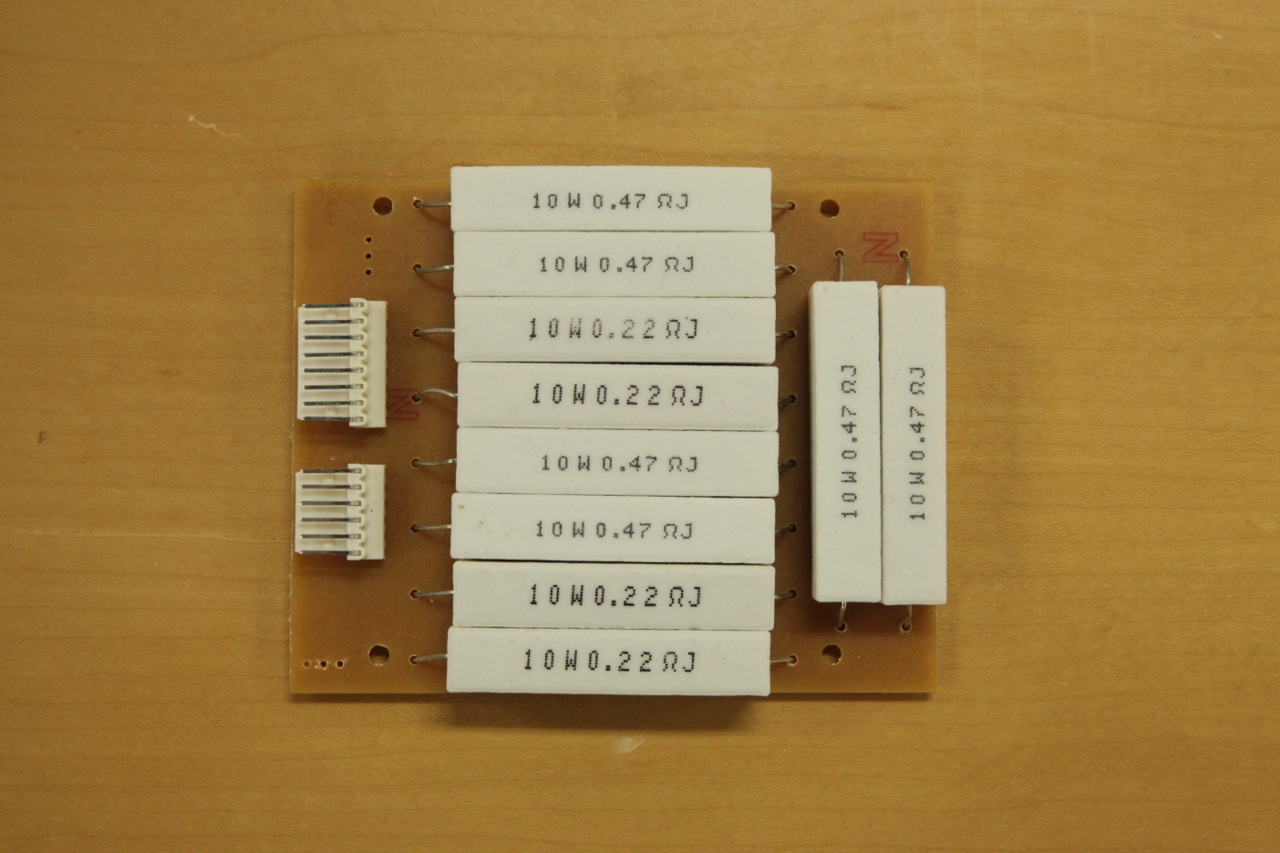

実際の回路
